Suitable for biscuits, block-shaped regular materials, bagged moon cakes, snow cakes, cakes, bagged finger biscuits, rice noodles, daily necessities, paper towels, sanitary napkins, masks, toothpaste and toothbrushes, soap, industrial parts, etc.

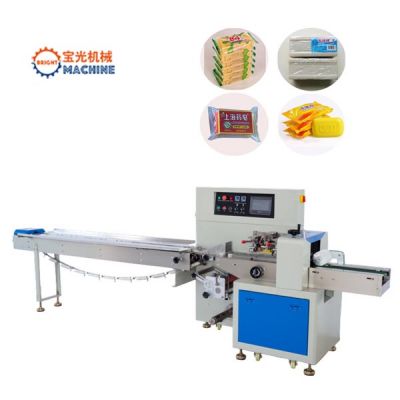

Fully automatic soap box packaging machine soap wrapping machine

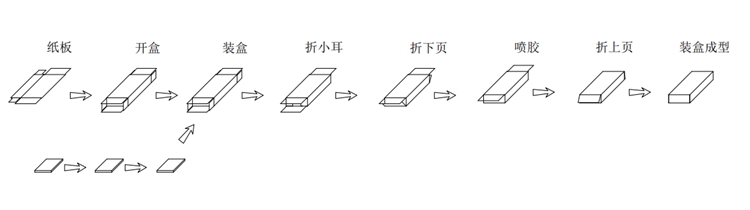

The product process includes unpacking → opening the box → pushing the material → automatic box loading → folding the small ears → folding the lower page → folding the upper page → box loading and forming → finished product.
1. Box rack mechanism:
The box rack is mainly used to place paper boxes, which is convenient for the suction cup to remove the boxes.
2. Box pressing mechanism:
The eccentric wheel allows the swing arm to swing up and down to seal the upper page of the box.
Carton conveying chain hook mechanism:
The carton conveying mechanism is mainly used to transport cartons to various workstations to complete ear punching, inserting, folding and other actions.
|
Serial number |
name |
Specification |
quantity |
Manufacturer |
|
1 |
Programmable controller |
FX3GA-40MT-CM |
1 |
Mitsubishi |
|
2 |
touchscreen |
TK6070iQ |
1 |
WEINVIEW |
|
3 |
Frequency Converter |
BFV00072GK |
1 |
Panasonic |
|
4 |
Square photoelectric sensor |
CX-442 |
2 |
Panasonic |
|
5 |
Cylindrical proximity sensor |
GX-112MLA |
1 |
Panasonic |
|
6 |
Photoelectric sensor with reflector |
CX-491 |
1 |
Panasonic |
|
7 |
Contactor |
XTCD25-11 |
1 |
CHNT |
|
8 |
Button |
A22-RD |
2 |
ETN |
|
9 |
Emergency stop switch |
A22-E.STOP |
1 |
ETN |
|
10 |
Rotary switch |
A22 |
1 |
ETN |
|
11 |
Motor |
CH28-750-25S |
1 |
Yongkun |
|
12 |
Switching Power Supply |
S-50-24 |
1 |
MEAN WELL |
|
13 |
fan |
12038 |
1 |
LEFAN |
|
14 |
Intermediate relay template |
AND-06A-16TN |
1 |
CHINA |
|
15 |
Solenoid valve |
3V210-08-NC |
1 |
AIRTAC |
|
16 |
Solenoid valve |
4V210-08-NC (DC24V) |
5 |
AIRTAC |
|
17 |
Switching Power Supply |
LRS-100-24 |
1 |
MEAN WELL |
|
18 |
Hydraulic buffer |
ACA1416 |
1 |
AIRTAC |
|
19 |
Pressure Controller |
PK506 |
1 |
AIRTAC |
|
20 |
cylinder |
TN16X30 |
2 |
AIRTAC |
|
twenty one |
cylinder |
TR16X15S |
2 |
AIRTAC |
|
twenty two |
cylinder |
TR16X40S |
1 |
AIRTAC |
|
twenty three |
Air source treatment triplex |
GRC30010F1 |
1 |
AIRTAC |
|
twenty four |
Rotary cylinder |
RTM30-90 |
1 |
CHELIC |
|
25 |
Linear Slides |
SSR20XW1UU+560L |
2 |
THK |
|
26 |
Suction cup |
35X14 |
2 |
Renqiu |
|
27 |
Steel base chain |
843T |
600 |
Dingfu |
|
28 |
Chain plate baffle |
820 |
26 |
Dingfu |
|
Model |
HDL-10 0 ( tongue plug ) |
|
Carton length |
80-180mm |
|
Carton width |
4 0~ 92 mm |
|
