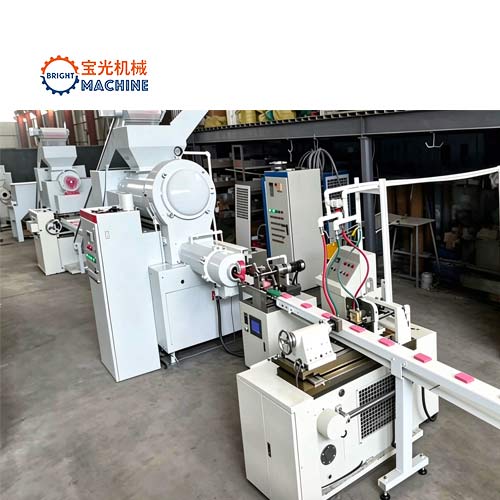

800kg/h Automatic Industrial Toilet Soap Machine Production Line

800kg/h Automatic Industrial Toilet Soap Machine Production Line

1. Executive Product Overview

Our advanced 800kg/h Automatic Industrial Toilet Soap Machine Production Line is an engineering marvel designed specifically for medium to large-scale soap manufacturers looking to boost production efficiency, optimize operational costs, and produce premium-quality soap bars. This fully integrated commercial system streamlines the entire manufacturing workflow—from raw ingredient mixing and refining to vacuum extrusion, precision bar stamping, and high-speed packaging.

Capable of producing 800 kilograms of high-grade toilet soap per hour, this high-capacity setup ensures high density, smooth skin feel, vibrant coloration, and long-lasting soap bar integrity. Built with industrial-grade stainless steel materials and powered by world-renowned electrical automation components, our toilet soap machine line meets international quality standards, including CE, ISO9001, and GMP compliance. Whether you are expanding an existing personal care factory or setting up a new turn-key soap plant, this machinery offers an unbeatable combination of durability, flexibility, and return on investment.

2. Key Engineering Advantages & Structural Features

Heavy-Duty Stainless Steel Construction (SUS304/SUS316)

To guarantee hygiene and long-term durability in high-humidity factory environments, all contact surfaces and critical operational components are fabricated using certified SUS304 or optional SUS316 stainless steel. The heavy-duty structural steel frame absorbs operational vibration, ensuring low noise levels, smooth mechanical motion, and an ultra-long equipment lifespan.

Dual-Stage Vacuum Plodder & High-Pressure Extrusion

At the core of our toilet soap making machine line is the dual-stage vacuum plodder equipped with an integrated vacuum cooling chamber. The high-vacuum system extracts all micro-bubbles and trapped air from the refined soap mass before final extrusion. This results in ultra-compact, translucent, high-density soap bars that resist cracking, swelling, or dissolving prematurely in water.

Precision Multi-Cavity Stamping & Custom Logo Molds

Our servo-driven automatic soap stamper allows manufacturers to produce intricate soap shapes with clean, smooth edges. We offer custom-designed mold cavities engraved with your brand logos, decorative patterns, and unique bar contours. The precision electronic eye registration system ensures accurate cutting and stamping at speeds matching the 800kg/h output without misshaping or sticking.

Intelligent PLC Automation & User-Friendly Interface

The entire toilet soap line is governed by a centralized Siemens/Delta PLC system equipped with a multi-language color touchscreen interface. Operators can easily set, monitor, and adjust critical parameters—such as screw rotation speed, cylinder heating/cooling temperatures, vacuum pressure levels, and cutting lengths—with a single touch. Integrated fault-detection alarms safeguard against operational overload and minimize downtime.

3. Step-by-Step Production Process & Line Configuration

1.

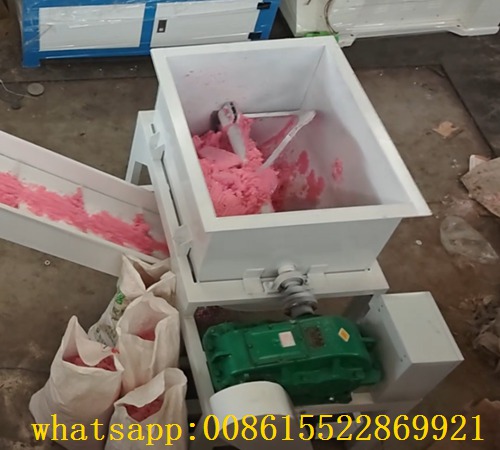

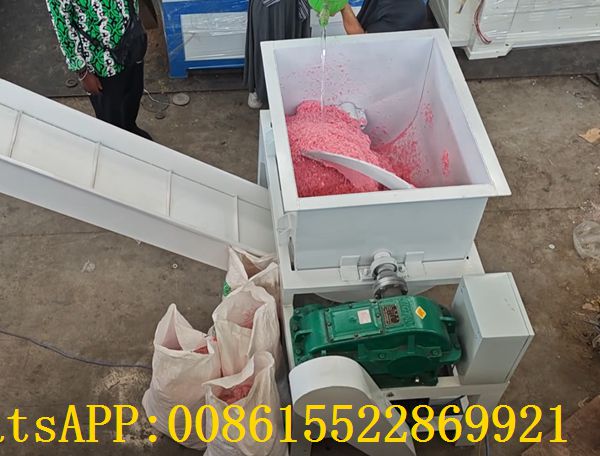

Soap Noodle & Additive Mixer: Homogenous blending of soap base, fragrance, essential oils, colorants, and moisturizing agents.

2.

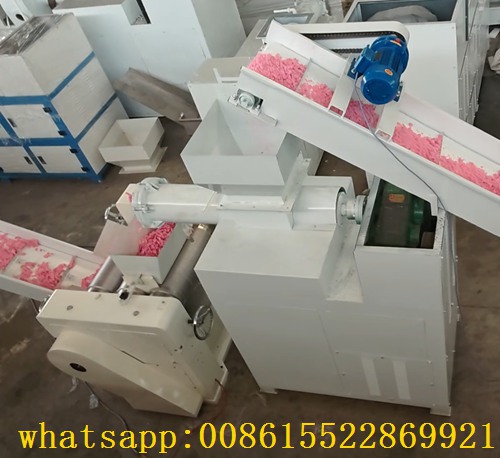

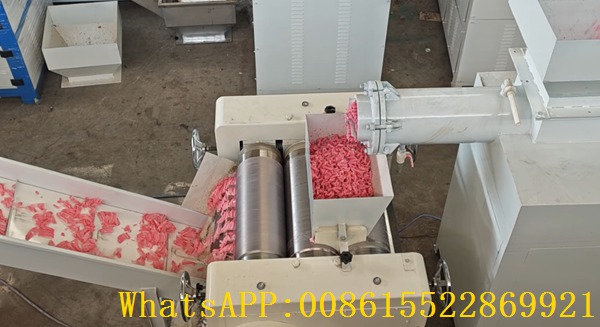

Three-Roll Mill (Refining & Homogenization): Shearing and refining the soap mixture into ultra-thin, smooth flakes to eliminate grit and unmixed particles.

3.

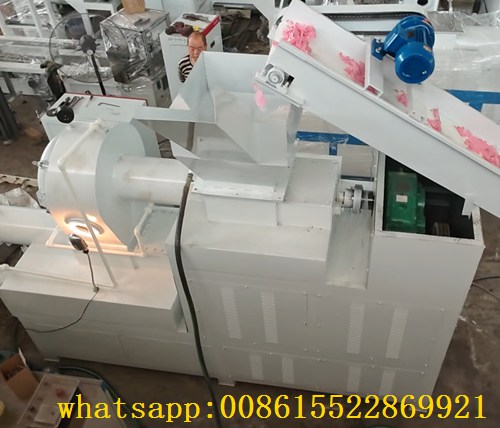

Duplex Vacuum Plodder (Extrusion): Compacts, degasses, and extrudes a continuous, solid bar of toilet soap under high pressure and temperature control.

4.

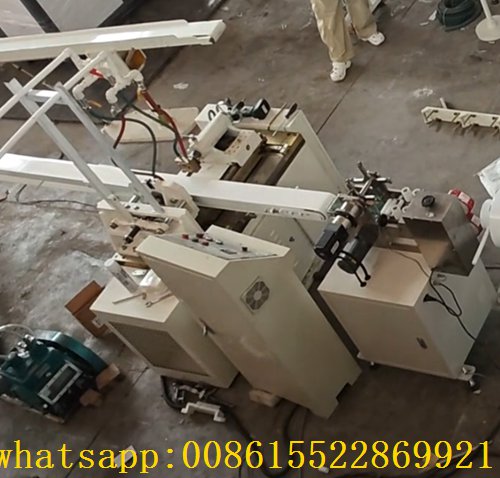

Electronic Flying Cutter & Servo Stamper: Cuts continuous soap bars into precise lengths and stamps them into finished, branded bar shapes.

5.

Chiller & Conveyor System: Rapidly cools stamped soap bars to prevent deformation during transfer to packaging machinery.

6.

Automatic Soap Wrapping Machine: Options for flow wrapping, box cartooning, or paper pleated wrapping according to market preferences.

4. Comprehensive Technical Specifications

Feature / Parameter

Specifications & Details

Model Series

TSM-800 Pro Line

Production Capacity

800 kg/hour (approx. 8,000–10,000 bars/hr depending on bar weight)

Applicable Products

Toilet Soap, Beauty Soap, Hotel Soap, Medicated Soap, Bath Bars

Soap Bar Weight Range

20g to 250g (Adjustable via mold changes)

Primary Contact Material

Food-Grade Stainless Steel SUS304 / SUS316

Vacuum Pressure

-0.08 to -0.095 MPa

Total Motor Power

Approx. 45kW – 65kW (3-Phase / 380V / 50Hz or Customized)

Control System

Programmable PLC with Touch Screen (Siemens / Delta / Schneider)

Cooling Method

Water Chilled Jacket Cooling System

Overall Footprint

Approx. 18m (L) x 3.5m (W) x 3.0m (H)

5. Suitable Raw Materials & Market Applications

This versatility-focused toilet soap production machine handles a wide spectrum of soap formulas, including:

Palm oil and coconut oil-based commercial soap noodles

Tallow-based industrial soap noodles

Translucent and glycerine-rich beauty soap bases

Herbal, organic, antibacterial, and medicated soap formulations

It is ideal for producing daily hotel amenities, premium personal care toilet soaps, baby soaps, and high-volume commercial bath soaps.

6. Comprehensive Turnkey Services & Global Support

We don't just sell soap machinery; we deliver complete end-to-end industrial manufacturing solutions:

Custom Plant Layout Design: Our engineering team designs optimized 2D/3D floor plan layouts tailored to your factory space and workflow.

On-Site Installation & Commissioning: Senior technicians dispatched globally for setup, calibration, and local worker training.

Spare Parts & Global After-Sales: Complete spare parts inventory with express air shipping and 24/7 remote video technical guidance.
