I. Brief Instruction:
This soap line is used to produce toilet soap and laundry soap with fatty acid content ( active matters content) from 60% to 80% . Material is soap noodle. Capacity is 1000~2000 kg/ hr. The dimension and pattern of the soap can be made by customer’s requirements . Parts of mixer and vacuum plodder that would be touched with soap materials are made of stainless steel 304 .
II. Production Condition:
1 . Materials: soap noodles, pigment, fragrance.
2. Workshop: above 150 m2 , L: 30 m , W: 5 m , H: 3.5 m , including operating space, excluding packing machine .
3. Power: greater than 200 kW, 380 V, 50 HZ.
4. Staff: 6 ~ 8 persons.
\

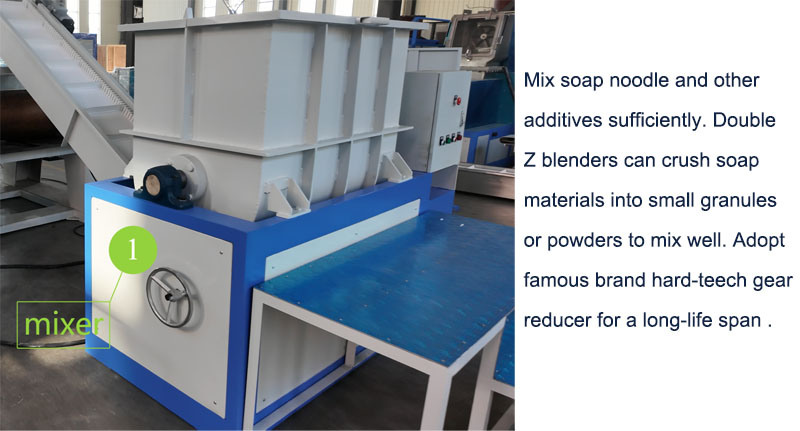

Soap mixer machine

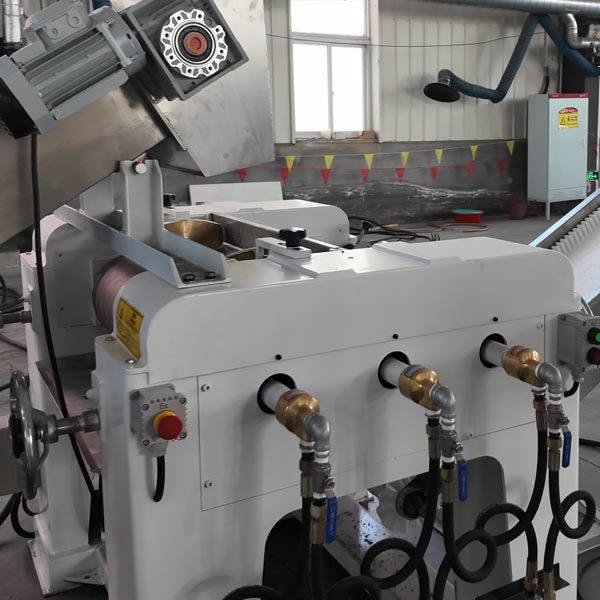

Three roll mill

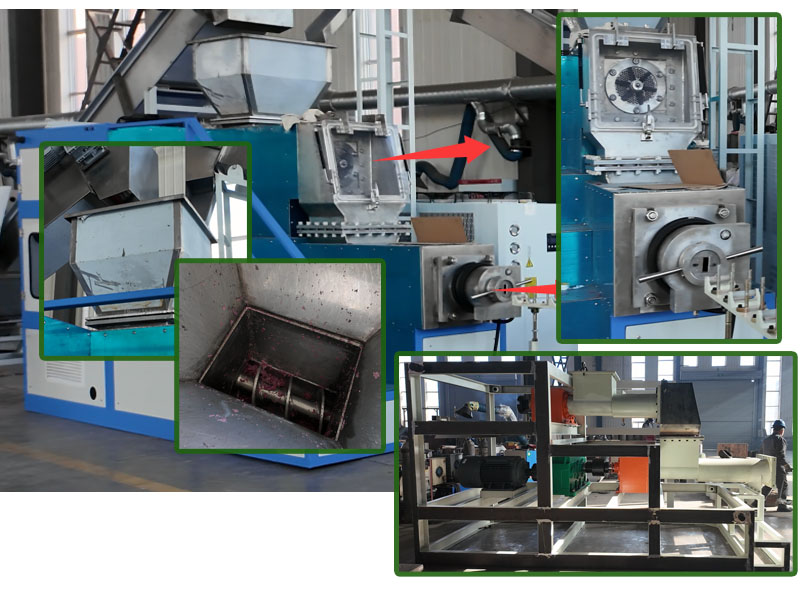

Soap plodder machine

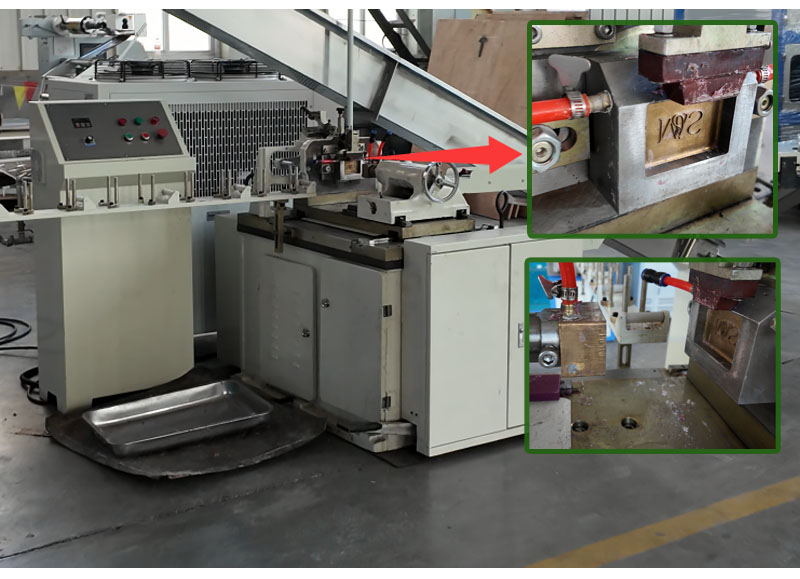

Automatic soap stamping machine

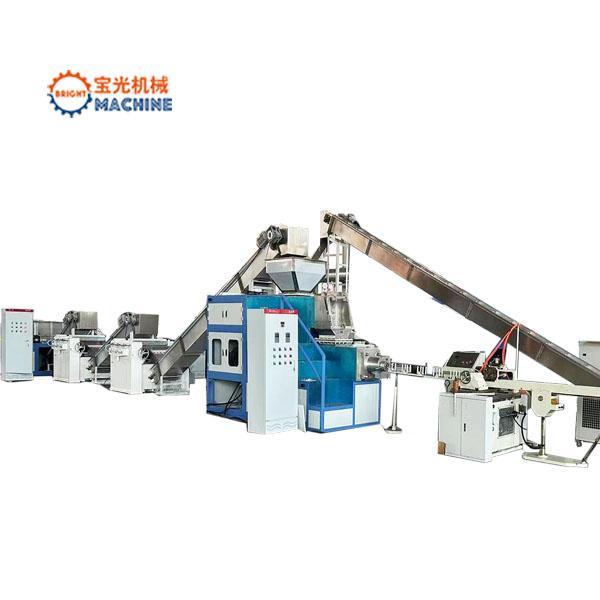

Tianjin Bright Machinery Equipment Co., Ltd. presents the industry-leading fully automatic toilet soap making machine, designed to deliver maximum efficiency, superior bar density, and exceptional surface finish for commercial soap manufacturers worldwide. Specially engineered to process premium soap noodles with fatty acid contents ranging from 60% to 80%, this high-capacity toilet soap production line yields an impressive output of 800 kg/h up to 2000 kg/h, making it the ideal automated solution for medium to large-scale personal care processing facilities.
Built with robust engineering and international standards, all material contact parts—including the soap mixer and double-layer vacuum plodder—are constructed from premium AISI 304 stainless steel. This guarantees strict compliance with global hygiene standards, prevents cross-contamination, and resists corrosion from essential oils, fragrances, and active additives.

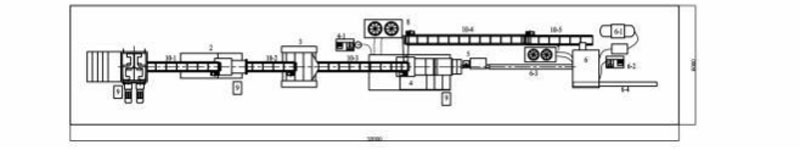

Our turnkey toilet soap manufacturing equipment seamlessly integrates every critical step of modern soap bar production into a continuous, highly efficient workflow:
High-Shear Soap Mixer: Ensures thorough, uniform blending of soap noodles with pigments, perfume, glycerine, and functional additives without degrading raw material quality.

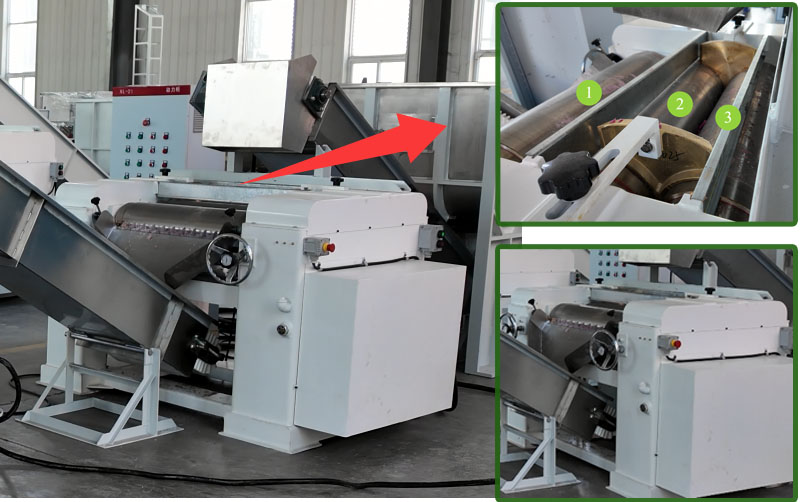

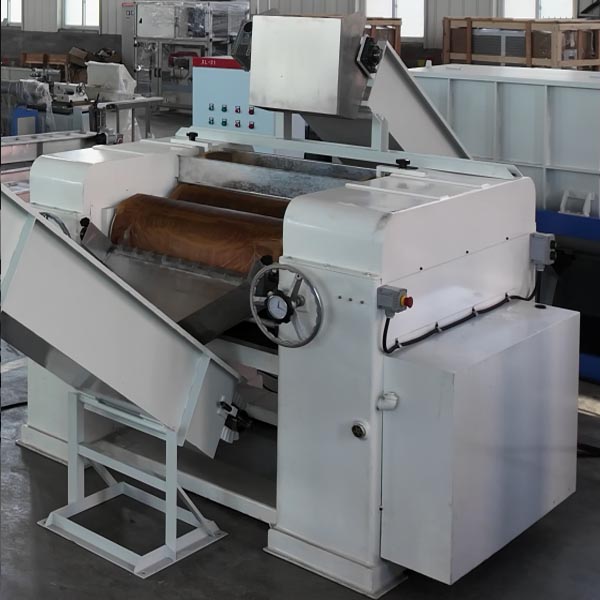

Precision Three Roll Mill: Refines and homogenizes the mixed soap mass through adjustable chilled-alloy rolls, eliminating gritty particles and creating a silky-smooth texture.

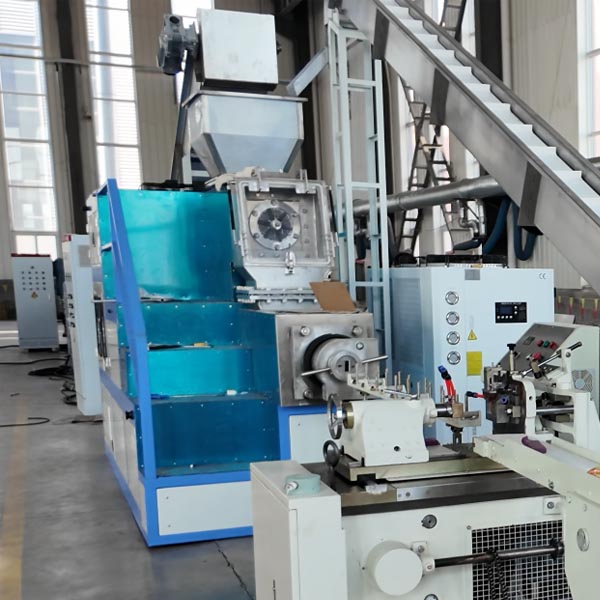

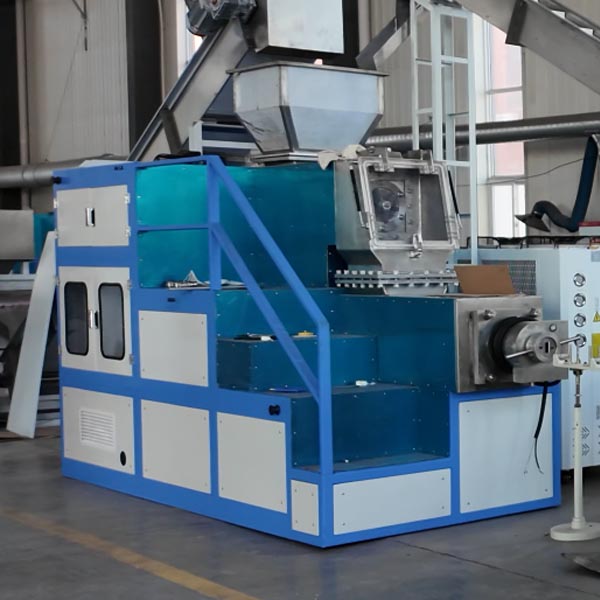

Double Stage Vacuum Plodder Machine: Compacts and extrudes the soap mass under high vacuum pressure. The dual-stage extrusion eliminates micro-air bubbles, significantly increasing soap bar density, hardness, and shelf life.

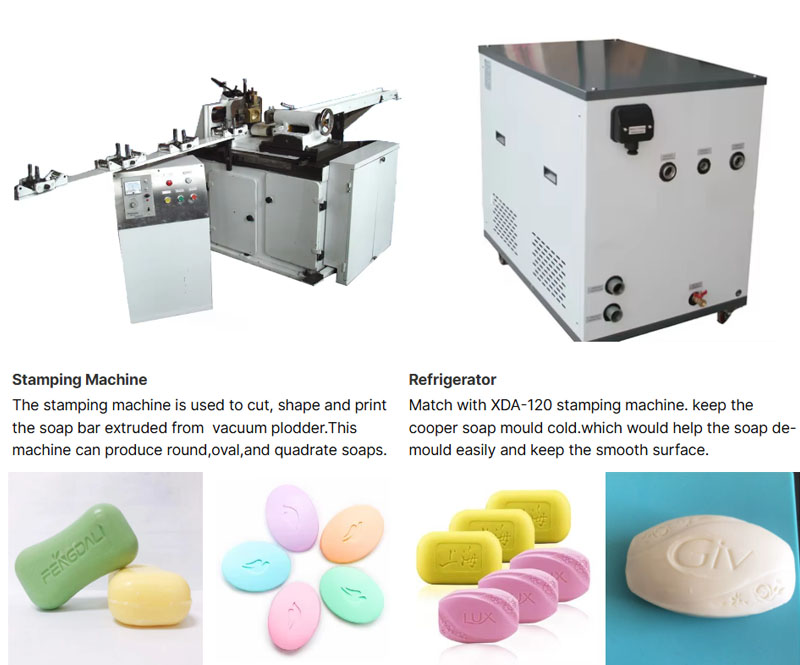

Automatic Soap Stamping & Printing Machine: Features servo-driven precision cutting and custom pattern embossing, stamping crisp logos, soap brand icons, and sharp contours at high speeds.
| Specification Parameter | Technical Standard / Value |
| Production Capacity | 800 – 2000 kg/hour (Customizable) |
| Applicable Raw Material | Soap noodles (Fatty acid active matter 60% – 80%) |
| Contact Material | Food-grade Stainless Steel 304 (SUS304) |
| Workshop Requirement | Minimum 150 m² (Length: 30m, Width: 5m, Height: 3.5m) |
| Power & Voltage | ≥ 200 kW, 380V / 50Hz (3-Phase, customizable) |
| Operational Workforce | 6 – 8 Operators (Fully automated control) |
| Final Product Varieties | Toilet soap, bath soap, hotel soap, laundry soap bars |
With nearly two decades of expertise in automatic soap-making machinery and pharmaceutical packaging equipment, Tianjin Bright Machinery Equipment Co., Ltd. is ISO9001 and CE certified. Driven by our corporate commitment—"Not the best, but better"—we deliver custom-engineered line layouts, full technical setup assistance, raw material guidance, and 24/7 overseas after-sales support to clients in over 100 countries.
Q1: Can this production line make both toilet soap and laundry soap? Yes, by adjusting the formula, die mold, and plodder extrusion pressure, this line can seamlessly switch between manufacturing premium toilet/bath soaps and heavy-duty laundry soaps.
Q2: Do you provide custom soap bar molds and logo embossing? Absolutely. We design and precision-craft customized stamping dies matching your brand’s required shape, weight (10g to 250g), logo, and decorative pattern.
Q3: What installation and commissioning services do you offer? We dispatch experienced mechanical and electrical engineers to your plant to supervise line setup, perform live test runs, and train your local operators on operational safety and routine maintenance.
Tianjin Bright Machinery Equipment Co., Ltd. is a leading manufacturer specializing in automatic soap-making machinery and pharmaceutical packaging equipment. With nearly two decades of expertise, our high-performance solutions range from soap processing lines (toilet and laundry soap) to capsule fillers, tablet presses, blister packing, and cartoning machines, widely serving the personal care, food, and pharmaceutical industries.Certified with ISO9001 and CE standards, we ensure premium quality, innovative technology, and full compliance with strict global standards. Driven by our philosophy—"Not the best, but better"—we offer tailor-made automation solutions, complete technical support, and dedicated after-sales services to clients across more than 100 countries worldwide.
