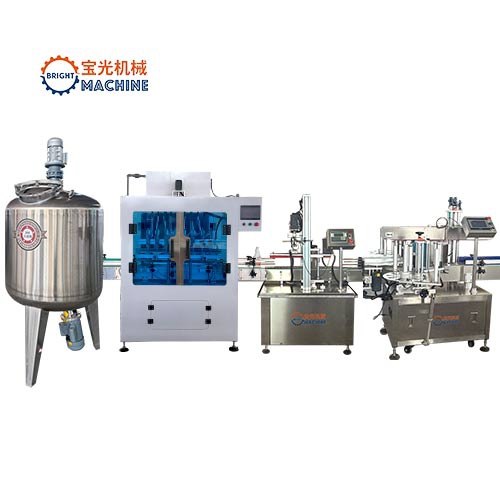

Designed for modern chemical manufacturing, our industrial liquid soap maker machine integrates high-shear emulsification, precise temperature control, wall-scraping mixing, and automated controls, allowing liquid soap producers to achieve perfectly homogenous, stable, and clear liquid hand soaps, body washes, and sanitizers with superior production efficiency and low power consumption.
In the expanding commercial hygiene and personal care market, producing premium-quality liquid soaps requires precise processing control, fast thermal transfer, and thorough emulsification. Our high-performance liquid soap maker machine is specifically engineered to meet the demanding operational standards of modern B2B chemical manufacturing facilities. Designed to process various formulations—including liquid hand soaps, body washes, dishwashing liquids, facial cleansers, and disinfectant soaps—this continuous blending system delivers maximum batch consistency and high hourly throughput.
Equipped with advanced high-shear homogenizers and specialized wall-scraping agitators, our liquid soap making equipment accelerates raw material dissolution (such as AES, LABSA, SLES, and functional additives) while preventing air entrainment and product settling. Built for long-term continuous operation, this machine provides the optimal balance between high production output, operational safety, and reduced labor requirements.
Advanced High-Shear Homogenizer: Features a high-speed rotor-stator homogenizer (top or bottom-mounted) that breaks down complex liquids into micron-level particles, guaranteeing smooth texture, high clarity, and long-term shelf stability without phase separation.
Triple-Layer Jacketed Vessel: Integrates electric or steam heating jackets along with an outer thermal insulation layer, enabling rapid heating and precise temperature maintenance throughout saponification, blending, and cooling stages.
Anchor Agitator with Flexible PTFE Scrapers: The slow-speed anchor mixer constantly sweeps the vessel walls during agitation, maximizing thermal efficiency, preventing localized scorching, and eliminating unmixed dead zones inside the tank.
Corrosion-Resistant Stainless Steel Construction: All product contact parts are fabricated from heavy-gauge SUS304 or SUS316L stainless steel with mirror-polished inner surfaces ($<0.4\,\mu\text{m}$) to resist aggressive chemical formulations and ensure easy clean-in-place (CIP) operations.
User-Friendly PLC Control Interface: Offers frequency control (VFD) for variable stirring and homogenizing speeds, real-time temperature tracking, digital timers, and automated discharge valves for simplified plant management.
Our standard liquid soap maker machine models can be customized to match your plant’s specific batch size and utility constraints:
| Technical Parameter | Model TJ-LSM-1000 | Model TJ-LSM-2000 | Model TJ-LSM-5000 |
| Working Volume | 1,000 Liters / Batch | 2,000 Liters / Batch | 5,000 Liters / Batch |
| Target Products | Hand Soap, Body Wash, Dishsoap | Hand Soap, Body Wash, Shampoo | Hand Soap, Dishsoap, Degreaser |
| Contact Material Grade | SUS304 / SUS316L Stainless Steel | SUS304 / SUS316L Stainless Steel | SUS304 / SUS316L Stainless Steel |
| Main Agitator Power | 5.5 kW - 7.5 kW | 11 kW - 15 kW | 22 kW - 30 kW |
| Homogenizer Speed | 0 – 3,000 RPM (VFD Control) | 0 – 3,000 RPM (VFD Control) | 0 – 2,800 RPM (VFD Control) |
| Mixing Speed | 0 – 63 RPM (Anchor Scraper) | 0 – 63 RPM (Anchor Scraper) | 0 – 50 RPM (Anchor Scraper) |
| Heating Method | Electric Heating / Steam Jacket | Steam Jacket / Electric Heating | Steam Jacket / Electric Heating |
| Control System | Siemens PLC / Button Panel | Siemens PLC & Touchscreen | Siemens PLC & Touchscreen |
| Dimensions (Dia.×H) | $1,200\,\text{mm} \times 2,200\,\text{mm}$ | $1,500\,\text{mm} \times 2,700\,\text{mm}$ | $2,000\,\text{mm} \times 3,800\,\text{mm}$ |
Investing in our industrial liquid soap maker machine guarantees more than just robust mixing equipment—we deliver end-to-end B2B technical services to streamline your plant operations from day one:
Custom Plant & Piping Design: Engineering tailored 2D/3D plant layouts, raw material storage vessel connections, and liquid transfer piping networks to fit your factory footprint.

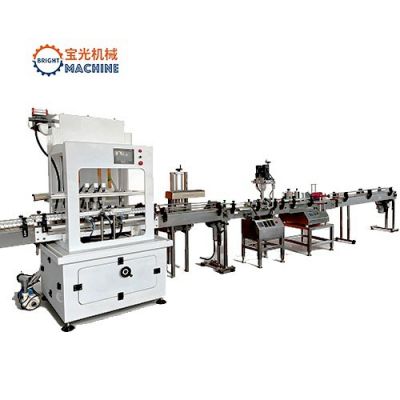

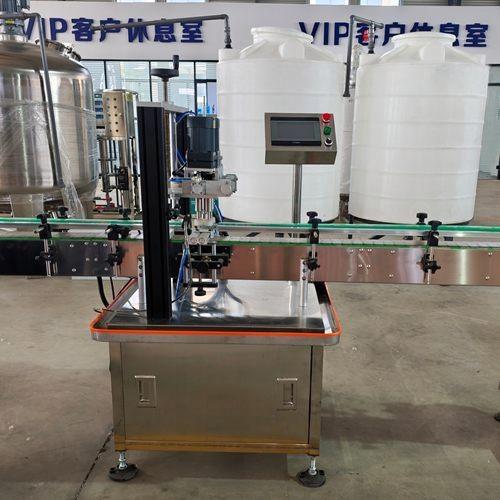

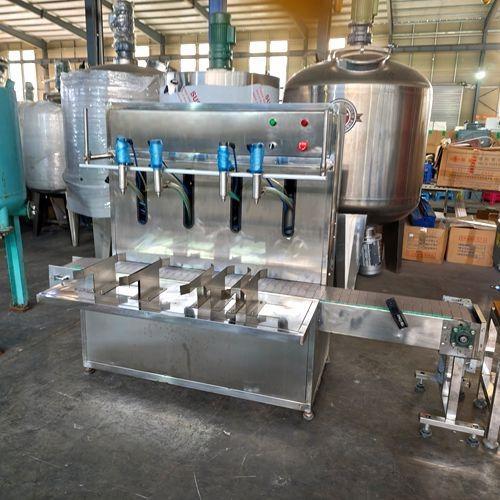

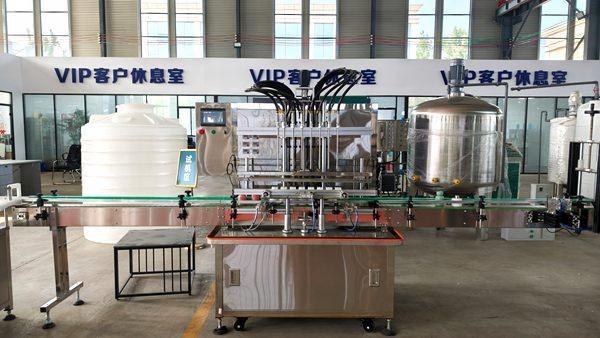

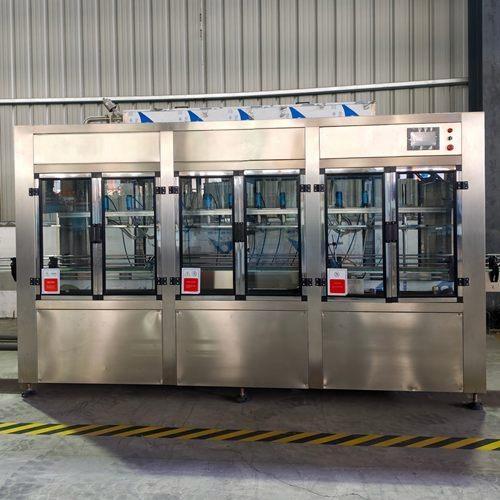

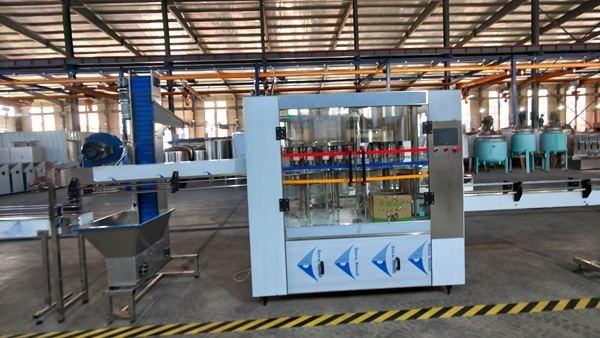

Downstream Equipment Integration: Seamless integration with deaeration tanks, liquid storage tanks, automatic bottle filling, capping, and labeling production lines.
On-Site Installation & Commissioning: Technical support engineers available for on-site machinery assembly, trial batch testing, and staff operational training.
Global Spare Parts & Remote Diagnostics: Direct factory supply of spare parts and 24/7 technical advice to minimize operational downtime.
Contact our sales engineering team today to receive custom equipment configurations, technical CAD drawings, and an immediate factory-direct price quotation for your liquid soap project.
