Product Description

Soap plodder machine Soap Vacuum Extruder Bar Soap Vacuum Extruder

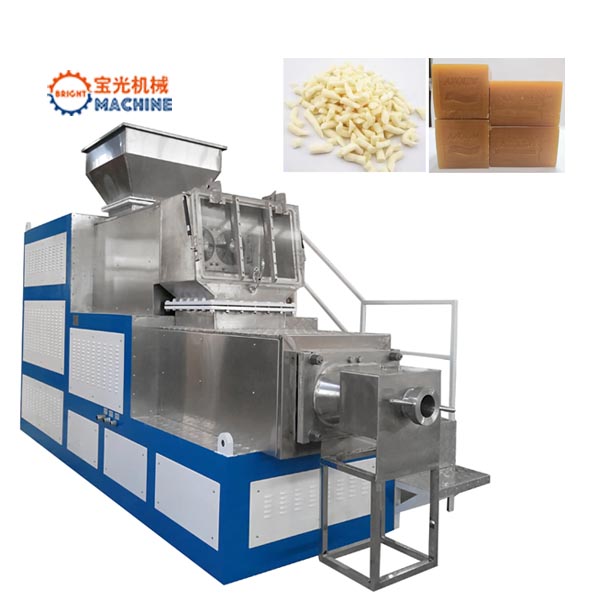

Industrial dual stage soap plodder machine for toilet soap manufacturing line

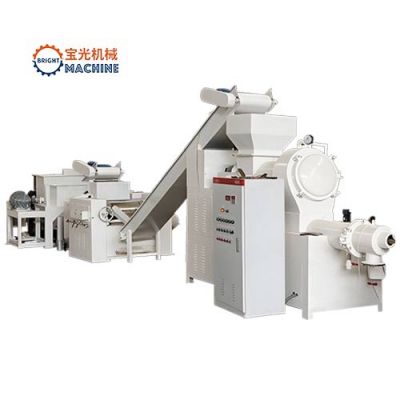

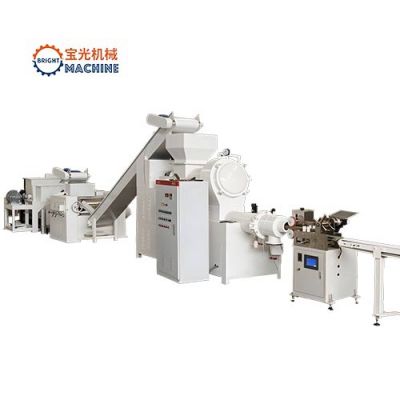

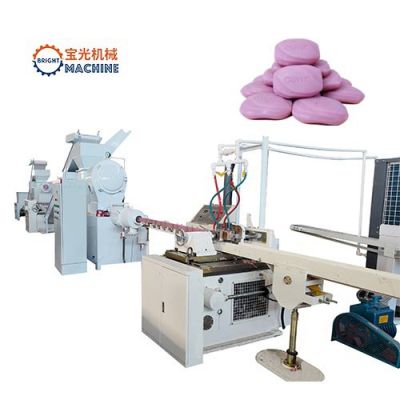

Soap Noodles Laundry Soap Production Line

Production Process:

Fully Mixing Agitator - Agitator soap noodles and other additives.

Three Roller Mill - Fully mix soap noodles and other additives again to make the soap structure tight and improve the density and quality of soap.

Vacuum Plotter - Used to grind, grind and press soap materials into bars.

Cutter - Cut and print logo on soap.

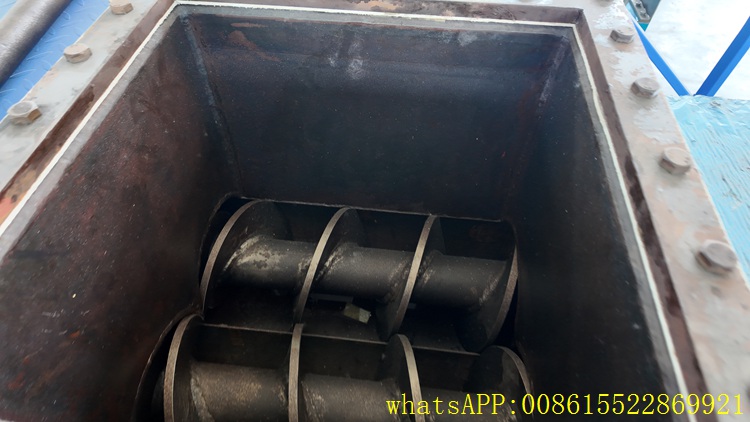

Stainless steel twin screw extruder mechanism inside vacuum soap plodder

Vacuum chamber assembly on heavy duty soap plodder extruder

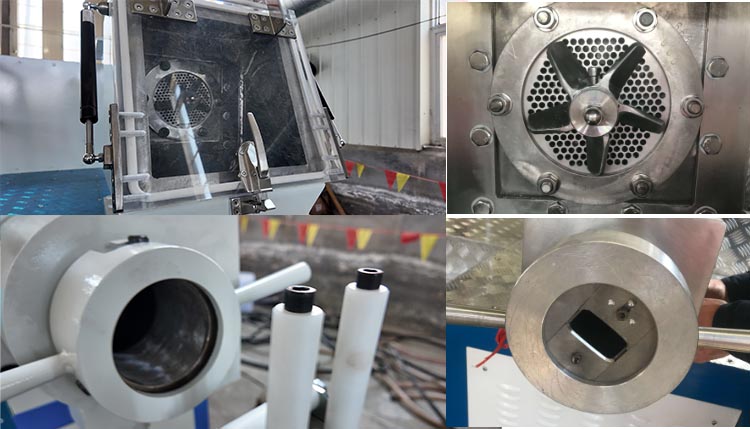

Continuous solid soap bar extrusion through soap plodder discharge die

Continuous solid soap bar extrusion through soap plodder discharge die

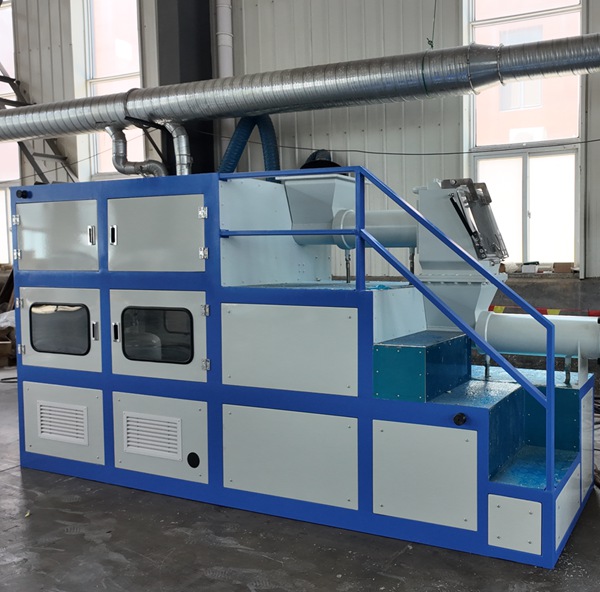

Automatic toilet soap production line featuring dual stage vacuum plodder machine

Siemens PLC touch screen panel for soap plodder machine operation

Heading 1: High-Efficiency Industrial Soap Plodder Machine for Professional Manufacturers

When it comes to mass commercial soap manufacturing, consistency, density, and finish quality are non-negotiable. Our high-efficiency Soap Plodder Machine (Soap Extruder) is engineered to transform refined soap noodles and flakes into ultra-dense, homogeneous, and smooth soap bars ready for cutting and stamping.

Whether you are expanding a modern toilet soap finishing line or upgrading a high-capacity laundry soap production facility, our vacuum plodding solutions deliver unparalleled structural stability, smooth surface texture, and long-term operational efficiency.

Heading 2: Key Features & Engineering Excellence

  • Dual-Stage Vacuum Extrusion System

    Equipped with advanced upper and lower extruding chambers and a high-vacuum chamber in between, our soap plodder effectively eliminates air bubbles and micro-voids from the soap mass. This ensures dense, crack-resistant, and glossy soap bars with an extended shelf life.

  • Heavy-Duty Stainless Steel Construction

    All contact parts—including barrels, extrusion screws, and discharge dies—are fabricated from food-grade AISI 304 or 316 stainless steel. This guarantees superior corrosion resistance against various fatty acid formulations, additives, and moisture.

  • Precision Temperature Control

    Integrated cooling jackets around the barrel and heated discharge heads allow precise thermal management. This prevents soap scorching, maintains optimal plasticization, and ensures uniform flow rates during continuous extrusion.

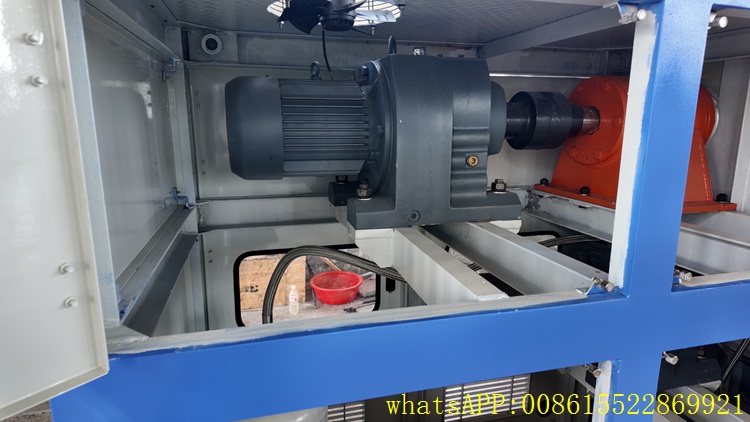

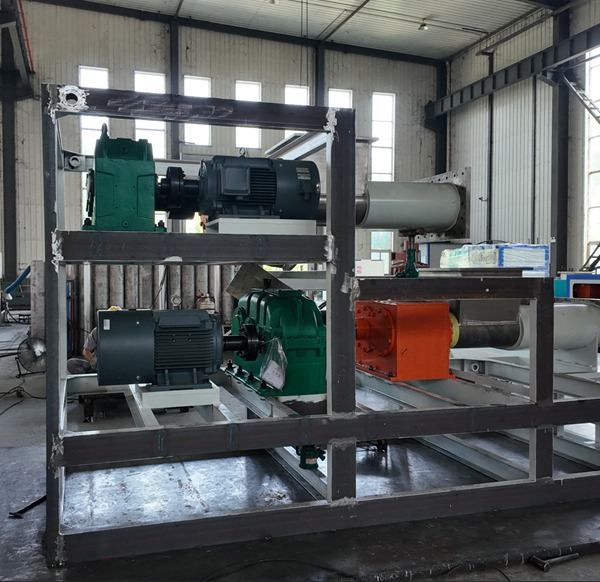

  • Heavy-Gear Reduction & Variable Frequency Drive (VFD)

    Powered by top-tier industrial gearboxes and Schneider/Siemens VFD systems, operators can seamlessly adjust extrusion speeds according to varying soap formulations, moisture content, and hardness requirements.

  • Customizable Discharge Dies & Shapes

    Easily swap extrusion heads to match specific bar dimensions, profiles, or multi-color/banded soap requirements.

Heading 3: Technical Specifications (Sample Data Sheet)

Parameter Single-Stage Plodder Dual-Stage Vacuum Plodder (Standard) High-Capacity Dual Plodder
Output Capacity 300 – 500 kg/h 1,000 – 2,000 kg/h 2,500 – 4,000 kg/h
Screw Diameter 150 mm - 200 mm 200 mm - 300 mm 300 mm - 400 mm
Main Motor Power 11 kW - 18.5 kW 22 kW - 45 kW 55 kW - 90 kW
Vacuum Degree N/A -0.08 to -0.09 MPa -0.09 to -0.098 MPa
Contact Material SUS 304 Stainless Steel SUS 304 / SUS 316 SUS 304 / SUS 316
Control System Button Control / PLC PLC Touchscreen (Siemens) PLC Touchscreen (Siemens)

Heading 4: Industrial Applications

Our versatile soap plodder machines are widely utilized across global personal care and household detergent industries, including:

  1. Toilet & Beauty Soap Production: Achieving silky-smooth surface finishes, fine texture, and vibrant color blending for premium guest and bath soaps.

  2. Laundry Soap & Detergent Bars: High-pressure compaction for long-lasting, hard-wearing laundry soaps that resist softening in water.

  3. Hotel & Translucent Soaps: Specially configured screws minimize thermal friction, preserving transparency in specialized translucent formulations.

  4. Hotel & Mini Soap Lines: Compact, small-footprint units tailored for boutique or high-volume hotel amenities manufacturing.

Heading 5: Why Partner with Us? (Your B2B Advantage)

  • Turnkey Soap Production Solutions: From soap noodle mixers and three-roll mills to plodders, cutters, and flow wrappers—we offer complete turnkey plant designs tailored to your factory footprint.

  • Custom OEM/ODM Engineering: Need customized screw pitch ratios, specific voltage configurations (380V/415V/480V), or anti-abrasion coatings? Our engineering team designs tailored solutions for unique soap formulas.

  • Rigorous Quality Testing & Global Compliance: Every unit undergoes strict dry-run and wet-run load testing prior to delivery, fully complying with ISO 9001 and CE standards.

  • Global After-Sales & On-Site Commissioning: We provide remote technical support, operational training, spare parts dispatch, and on-site engineer deployment worldwide.

Heading 6: Request a Quote & Factory Tour Today

Upgrade your soap manufacturing line with industry-proven, high-durability soap plodding technology. Contact our technical sales team today to discuss your target capacity, request customized layout drawings, or schedule a virtual factory audit.
