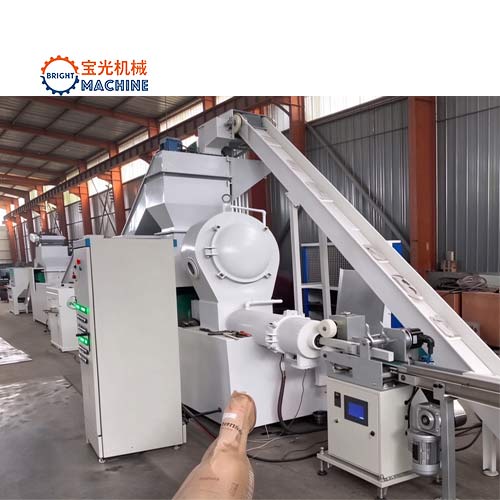

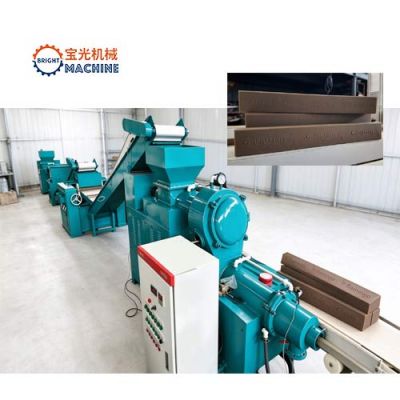

Industrial 1000kg/h Bar Soap Manufacturing Line – Fully Automatic Soap Making Machinery

Detailed Engineering & Technical Component Specifications:

1. High-Torque Twin-Z Blade Soap Mixer (Shear Blending Unit)

   • Mechanical Structure: Heavy-duty reinforced mixing trough constructed from AISI 304/316 stainless steel with dual counter-rotating Z-shaped agitator blades.

   • Drive & Torque: High-torque helical gear reducer driven by a heavy-duty motor, engineered to process high-viscosity soap noodles and additives efficiently.

   • Process Function: Delivers intensive mechanical shear to homogenize soap noodles, colorants, liquid fragrances, titanium dioxide, and active ingredients without dead zones.

   • Discharge System: Pneumatically controlled bottom discharge gate ensuring quick cycle times and zero residue carryover between batches.

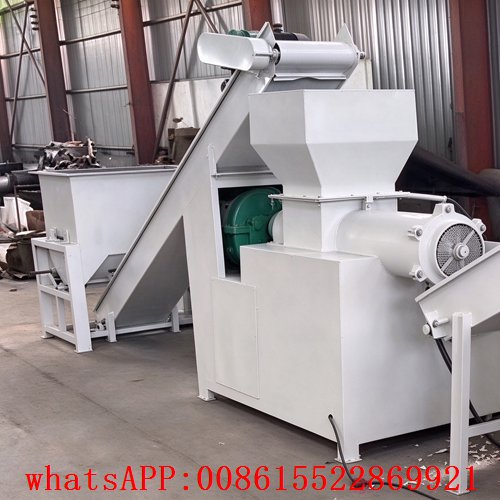

2. Fine Soap Refiner / Duplex Refining Plodder (Particle Homogenization)

   • Filter Grid & Mesh: Fitted with a high-strength perforated refining plate (hole diameter: 0.8–1.5 mm) backed by a stainless steel screen filter to trap un-saponified grit and particles.

   • Thermal Control: Integrated jacketed barrel with multi-zone heating/cooling channels allowing precise temperature management to maintain optimal mass plasticity.

   • Auger & Barrel: Screw augers manufactured from special wear-resistant alloy/stainless steel with variable-pitch geometry to minimize shear heat buildup.

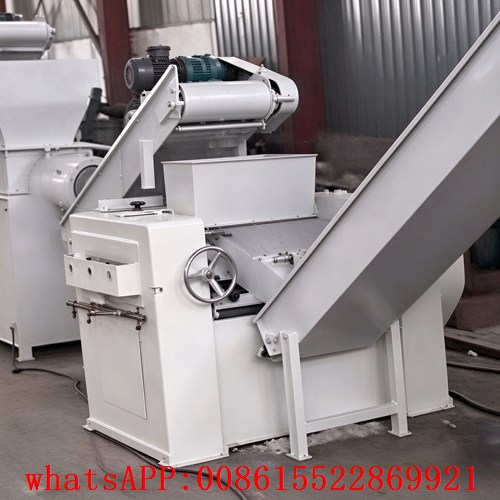

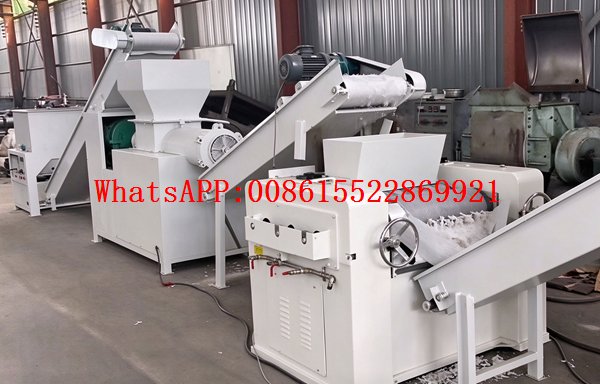

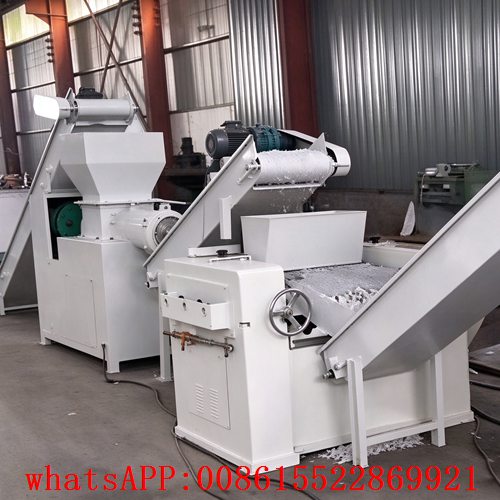

3. High-Precision Three-Roll Mill (Micro-Refining & Flaking)

   • Roll Material & Hardness: Three horizontally arranged chilled cast alloy rollers (surface hardness: HRC 60–65) ground with dynamic crowning to withstand deflection under intense hydraulic compression.

   • Speed Ratio: Differential rotational speeds across the fast, medium, and slow rolls (typically 1:2.5:6 ratio) generate extreme friction and shear stress.

   • Micron-Level Clearance: Hydraulic or manual micrometer gap control allows precision roll adjustment down to 0.02–0.05 mm, crushing crystalline structures into micro-thin flakes for a velvety soap texture.

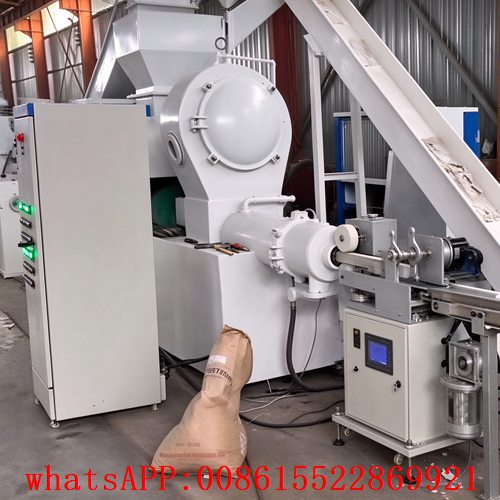

4. Vacuum Duplex Plodder / Extruder (Deaeration & Continuous Bar Formation)

   • Two-Stage Extrusion: Upper stage acts as a vacuum feeder and cutter; lower stage acts as the primary compression extruder.

   • Deaeration Performance: Liquid-ring vacuum pump system achieves a continuous negative pressure up to -0.092 to -0.098 MPa, eliminating micro-air pockets, pinholes, and internal voids to prevent soap cracking.

   • Temperature-Controlled Extrusion Head: Multi-zone PID-controlled circulating water jacket on the extrusion cone ensures smooth surface melting, precise die head pressure, and high-gloss bar finish.

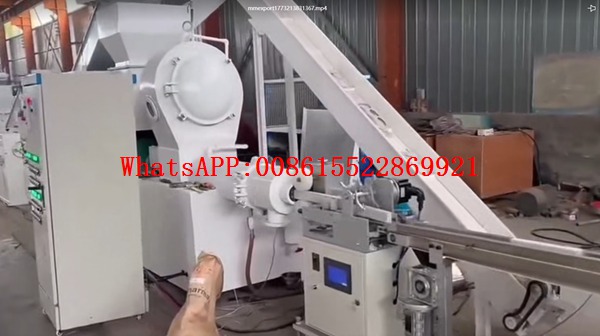

5. Servo-Synchronized Flying Cutter & Stamper (Precision Cutting Unit)

   • Kinematic Synchronization: Servo-motor driven rotary or guillotine cutter linked directly via encoder feedback to the plodder’s linear extrusion speed, delivering cutting precision within ±0.5g per bar.

   • Die Mechanism: Pneumatic or hydraulic stamping press with quick-change aluminum/brass mold cavities, equipped with internal chilled fluid channels to prevent soap sticking during high-speed logo impression.

Core Technical Advantages & Operational Parameters:

• Production Capacity: 1000 kg/h nominal throughput (expandable up to 1200 kg/h depending on soap formulation and moisture content).

• PLC Automation & Control: Siemens/Schneider PLC architecture with a multi-language HMI touchscreen panel, featuring real-time monitoring of motor current, barrel pressure, vacuum levels, and zone temperatures.

• Material Integrity: All contact parts (hopper, augers, rolls, cutter blades, dies) are fabricated from SUS304/SUS316, conforming to international GMP standards.

• Energy Optimization: Equipped with Variable Frequency Drives (VFD) on all major motors, lowering startup current peak loads and reducing overall energy consumption by up to 20-25%.

• Safety Features: Complete emergency interlocks, safety guards on rotating rolls, pressure relief valves, and overload protection compliant with CE machinery safety directives.
