Full automatic soap saponifition machine for 1000-5000kg capacity supplier

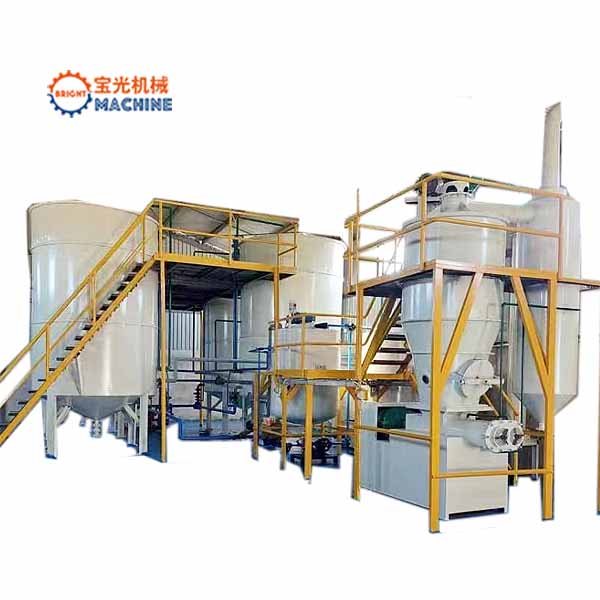

Heavy-Duty Industrial Saponification Plant & Soap Noodle Production Line

Welcome to Tianjin Bright Machinery Equipment Co., Ltd. (TJ Bright), your trusted global partner in advanced soap manufacturing technology. We engineer, manufacture, and install high-performance industrial saponification plants designed to convert raw oils, fats, and caustic soda into high-quality soap noodles, laundry soap bases, and premium toilet soap stocks.

With over 20 years of expertise in chemical process equipment and soap machinery engineering, TJ Bright provides fully continuous, semi-automatic, and custom-designed soap saponification systems ranging from 300 kg/h to 5,000 kg/h capacity.

[H2] Complete Saponification Reaction & Processing Solutions

Modern commercial soap manufacturing requires precise temperature control, automated chemical dosing, and consistent stoichiometric mixing. Our automatic saponification plant integrates every stage of the primary soap-making reaction into a seamless, high-efficiency production system.

Core System Components:

1. Dosing & Feed System: Automated metering pumps for oils, fats, liquid caustic soda (NaOH), brine (NaCl), and water to ensure strict reaction precision.

2. High-Shear Saponification Reactor (Crutcher/Column): Designed for maximum mass transfer, promoting complete triglyceride hydrolysis and neutralizing fatty acids rapidly.

3. Static Mixer & Thermal Exchangers: Ensures precise heat regulation and thorough homogenizing under continuous liquid movement.

4. Glycerine Extraction & Washing Unit: Efficient multi-stage counter-current washing system to recover valuable glycerine and adjust soap core neatness.

5. Vacuum Drying & Cooling System: Converts liquid soap paste into moisture-controlled soap neat, optimized for subsequent vacuum plodding and noodle formation.

[H2] Key Features & Technical Advantages

Why do leading global soap manufacturers trust TJ Bright’s continuous saponification plant?

• High Energy Efficiency & Reduced Operational Cost: Optimized thermal circulation reduces steam consumption by up to 25% compared to traditional open-kettle batch saponification systems.

• Compact Footprint & Modular Engineering: Engineered with a compact vertical layout, our plants save precious factory floor space while allowing easy modular expansion.

• Precision PLC Automated Control: Integrated Siemens PLC with interactive touch-screen HMI offers full-line monitoring, fault diagnosis, and programmable recipe management.

• Unmatched Soap Base Quality: Produces consistent, high-purity soap noodles with adjustable total fatty matter (TFM) content (from 40% to 80%), low free alkali levels, and excellent translucency/whiteness.

• Heavy-Duty SS304/SS316 Stainless Steel Construction: Contact parts are built with corrosion-resistant food/chemical grade stainless steel to withstand aggressive caustic environment and grant 24/7 continuous operation for 10+ years.

[H2] Technical Specifications & Production Capacities

We customize every saponification machine line to align with your factory’s raw material profile (palm oil, tallow, coconut oil, acid oil) and desired throughput:

Parameter

Standard Model / Small Scale

Medium Commercial Line

Large Industrial Plant

Capacity (Kg/Hour)

300 – 800 kg/h

1,000 – 2,500 kg/h

3,000 – 5,000+ kg/h

Primary Material

SS304 / Carbon Steel

SS304 Contact Parts

Full SS304 / SS316 Alloy

Control Type

Semi-Auto / Electric Panel

PLC + Touch Screen

Fully Automated DCS/PLC

Power Consumption

22 kW - 45 kW

55 kW - 110 kW

Custom Hydro-Thermal

Steam Pressure

0.4 – 0.6 MPa

0.6 – 0.8 MPa

0.8 – 1.0 MPa

Applicable Products

Laundry Soap, Soap Flakes

Laundry Soap, Toilet Soap

Premium Toilet Soap, Hotel Soap

 End-to-End Turnkey Soap Manufacturing Projects

Buying a saponification plant from TJ Bright means acquiring a complete process solution. From initial plant layout drafting and piping schematics to on-site installation, commissioning, and staff training, our expert engineering team accompanies you at every step.

Whether you plan to build a greenfield laundry bar soap factory or upgrade an existing toilet soap production line, we deliver reliable machinery, competitive factory-direct pricing, and long-term spare parts supply.

[H2] Frequently Asked Questions (FAQ)

Q1: Can your saponification plant process low-grade fats or acid oils?

A: Yes. Our reactors can be optioned with pre-treatment, bleaching, and specific acid neutralization units to handle diverse lipid feedstocks including palm stearin, tallow, coconut oil, and recovered acid oils.

Q2: What is the maintenance cycle for the continuous saponification reactor?

A: Due to dynamic mechanical seals and heavy-duty stainless steel build, standard maintenance is minimal. Main inspections (pumps, seals, and sensors) are recommended annually during scheduled downtime.

Q3: Do you supply overseas installation and engineer training?

A: Absolutely. TJ Bright sends experienced technical engineers overseas for complete plant assembly, piping connection, trial runs, and operator training.

Request a Custom Saponification Line Quote Today

Ready to boost your soap manufacturing output with a reliable, energy-saving industrial saponification plant? Contact Tianjin Bright Machinery Equipment Co., Ltd. today to discuss your raw material specifications, capacity goals, and factory floor plan.
