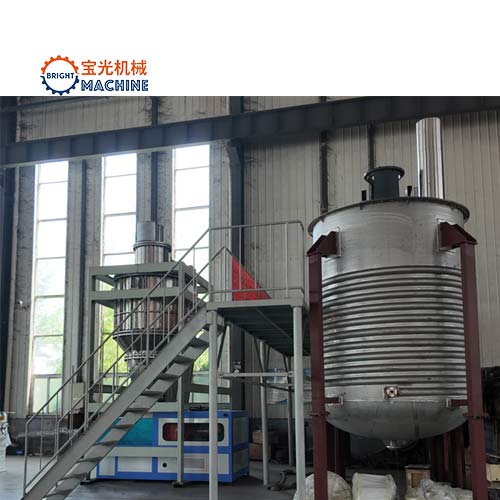

Fully Automatic Saponification Line with Vacuum Drying & Soap Pelleting System

Fully Automatic Saponification Line: High-Efficiency Soap Base Production System

In the modern soap manufacturing industry, production stability, raw material conversion rates, and energy efficiency determine long-term profitability. Our fully automatic saponification line is an end-to-end industrial solution engineered to transform refined fats, oils, and caustic soda into homogeneous, premium-grade soap noodles and soap base. Designed for medium to large-scale commercial soap factories, this integrated system delivers continuous processing, precise temperature regulation, and minimal manual intervention.

Core Equipment Components of the Saponification Line

Our complete saponification plant integrates three critical processing units, working seamlessly to achieve complete reaction, moisture control, and particle shaping:

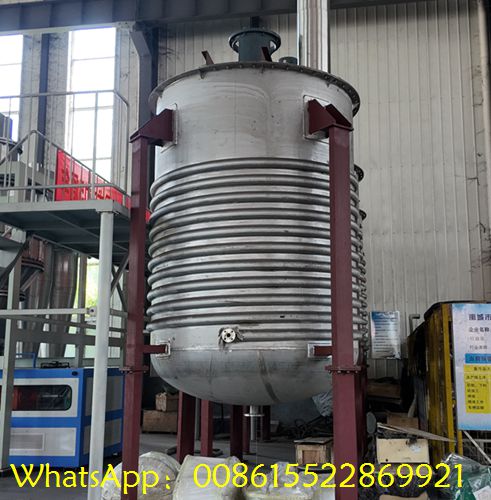

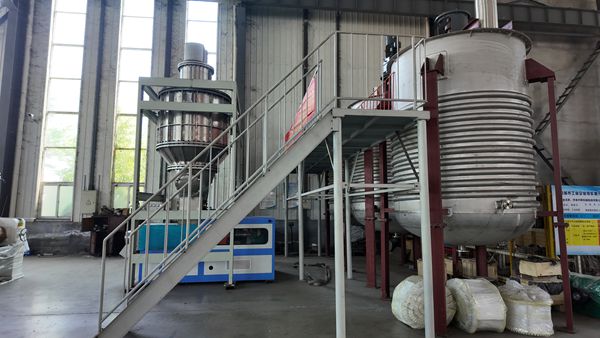

1. High-Efficiency Saponification Reactor (Saponification Tank)

At the heart of the system lies the industrial saponification reactor. Built from heavy-duty stainless steel (SUS304/SUS316), the vessel is equipped with advanced jacketed heating and powerful anchor agitators. It ensures rapid emulsification and complete thermal distribution during the saponification reaction. Automated chemical dosing controls allow precise metering of fats, fatty acids, and alkali solution, ensuring consistent batch quality and zero raw material waste.

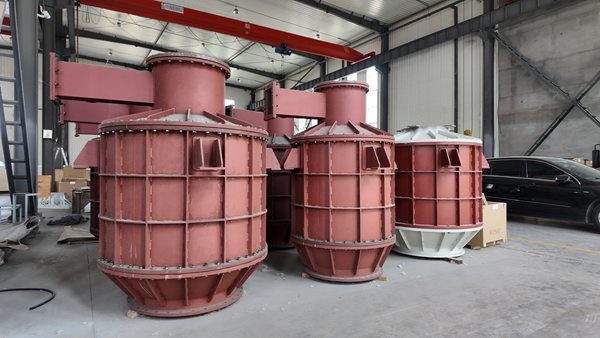

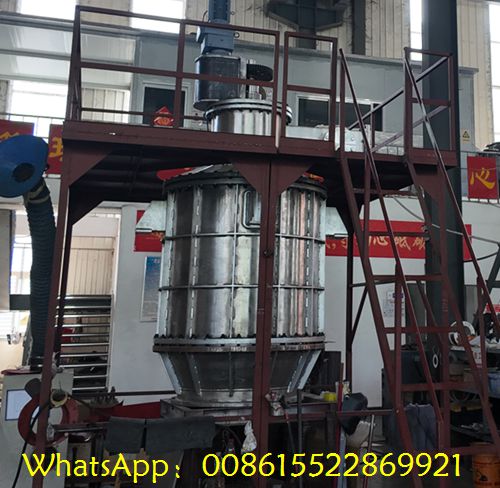

2. Advanced Vacuum Drying Chamber (Vacuum Dryer)

Once the saponification process achieves optimal neutralization, the molten soap paste is transferred under pressure into the continuous vacuum drying chamber. By lowering the boiling point under high vacuum conditions, moisture content is flash-evaporated quickly and evenly without scorching the soap mass. This step controls the exact final moisture level (typically reduced from 30% down to 12%–14%) while maintaining the natural color and aroma of the soap formulation.

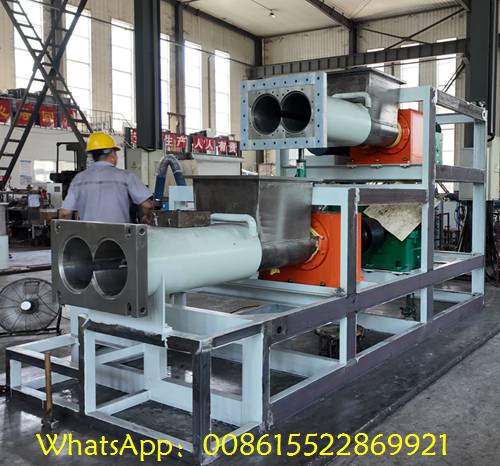

3. Heavy-Duty Soap Granulator / Soap Pelletizer

The cooled and flash-dried soap base is extruded continuously through a precision-engineered perforated plate. The heavy-duty pelletizer cuts the dense extruded mass into uniform, translucent soap noodles or soap pellets. These finished pellets serve as the ideal raw material for downstream toilet soap finishing lines, laundry soap vacuum plodders, or specialty soap packaging systems.

Key Technical Advantages for B2B Soap Manufacturers

• Complete Fat & Oil Processing Capability: Versatile engineering allows the line to process diverse lipid sources, including palm oil, tallow, coconut oil, fatty acid distillates (PFAD), and recycled vegetable oils.

• Fully Automated PLC Touchscreen Control: Centralized control panel monitors temperature, vacuum pressure, feeding rates, and batch cycles in real time, drastically reducing labor costs and operational risk.

• High Yield & Low Energy Consumption: Thermal recycling design and optimized vacuum flash evaporation reduce energy consumption per ton of soap produced by up to 20% compared to traditional open-kettle boiling.

• Sanitary & Durable Construction: Heavy-gauge stainless steel contact parts prevent rust and chemical contamination, adhering strictly to international industrial production and hygiene standards.

Applications & Downstream Integration

This automatic saponification machine line provides the perfect foundation for complete soap manufacturing plants. The produced soap base pellets can be directly packaged for wholesale export or transferred into finishing machinery to produce:

• High-grade toilet soap bars and beauty soaps

• Heavy-duty commercial laundry soap bars

• Medicated, hotel, and translucent specialty soaps

Why Partner with Us?

As an established global supplier of industrial soap making machinery, we offer turnkey plant designs, customized factory layouts, installation support, and lifecycle maintenance. Whether you are upgrading an existing boiled-soap system or commissioning a new greenfield soap production facility, our engineering team provides complete technical guidance to ensure fast commissioning and optimal ROI.

Contact our engineering consultants today to receive technical specifications, plant layouts, and a customized quotation for your saponification line project.
