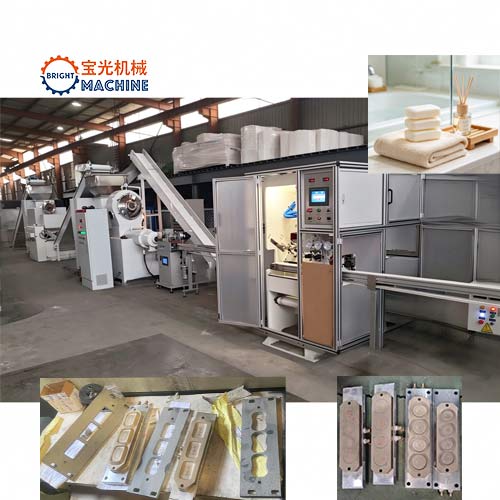

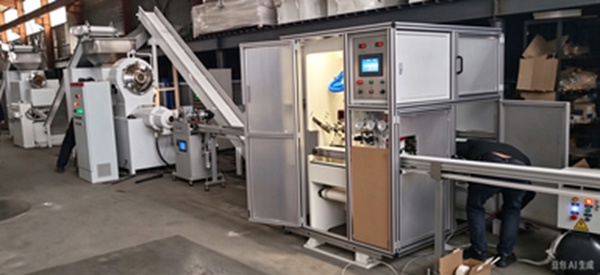

Commercial 1500 Pcs/Day Bar Soap Manufacturing Equipment & Complete Line

Executive Summay

Take full control of your soap production with our engineered 1500 pcs/day bar soap manufacturing line. Specially configured for small-to-medium enterprises, boutique soap brands, cosmetic laboratories, and commercial soap workshops, this turn-key manufacturing system delivers high-density extrusion, precise ingredient blending, and ultra-crisp custom logo stamping.

Whether you are producing high-end toilet soaps, hotel guest soaps, translucent beauty bars, or functional laundry soap bars, our integrated line guarantees seamless automation, low power consumption, and long-term mechanical reliability.

Detailed Component Breakdown & Operating Principles

1. Heavy-Duty Soap Ribbon Mixer

• Function: Homogeneous mass blending of soap noodles with colorants, essential oils, fragrances, skincare additives, and functional ingredients.

• Key Features:

  • Double-helix ribbon agitator design prevents dead spots during the mixing cycle.

  • Food-grade Stainless Steel (SUS304) product contact zone ensures zero batch contamination.

  • Easy-open discharge gate for smooth material transfer directly into the refining stage.

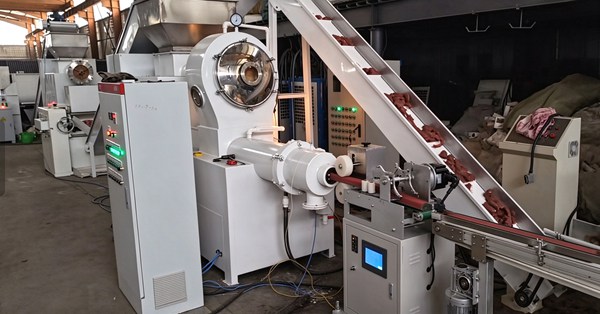

2. Fine Refining Plodder / Soap Refiner

• Function: Particle size reduction and structural homogenization.

• Key Features:

  • Heavy-duty internal screw mechanism compresses raw soap noodles through a high-mesh refining grid.

  • Eliminates un-dissolved raw noodles, hard specks, and coarse additives to create a silky, smooth base paste.

  • Enhances the binding ability of soap molecules for superior durability and lather quality.

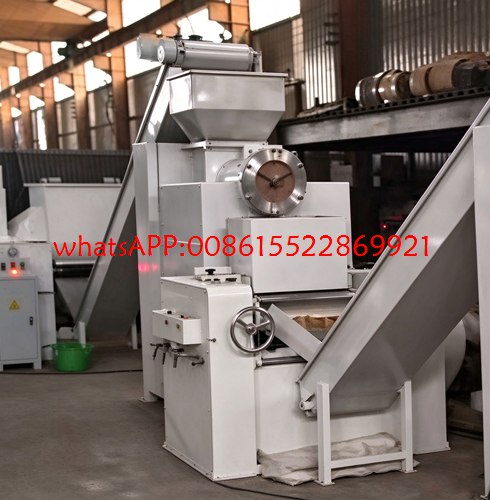

3. Precision Triple Roll Mill / Soap Grinder

• Function: Shearing, milling, and fine dispersion of soap mass to achieve a solid crystalline structure.

• Key Features:

  • Chilled-cast iron rollers ground to high accuracy for consistent, uniform pressure across the gap.

  • Variable differential speed between rolls subjects the soap mass to intense shearing forces, creating a velvet-soft, uniform film.

  • Prevents future soap bars from cracking, swelling, or losing shape when exposed to water.

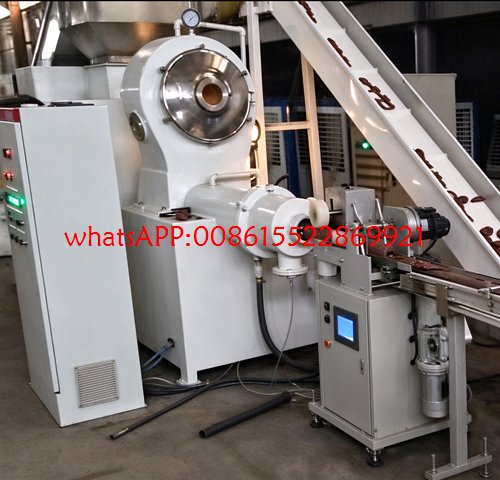

4. Continuous Vacuum Extruder / Plodder

• Function: De-aeration and high-pressure extrusion into a continuous dense soap bar.

• Key Features:

  • Integrated vacuum chamber draws out entrapped air bubbles to guarantee a smooth, non-porous finish.

  • Temperature-controlled jacket around the extrusion barrel ensures optimal paste plasticity.

  • Interchangeable discharge dies allow you to quickly change the cross-sectional shape and size of the soap strip.

5. Automatic High-Precision Soap Cutter

• Function: Cutting the continuous extruded bar into exact length billets prior to stamping.

• Key Features:

  • Synchronized blade action driven by sensitive length sensors ensures zero material waste and identical billet dimensions.

  • Smooth, burr-free cuts keep the soap billets aligned perfectly for multi-cavity stamping feed.

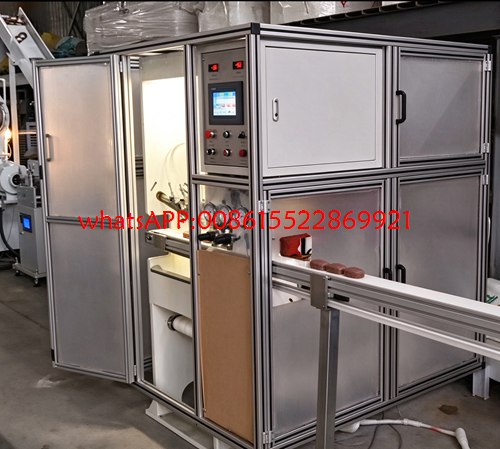

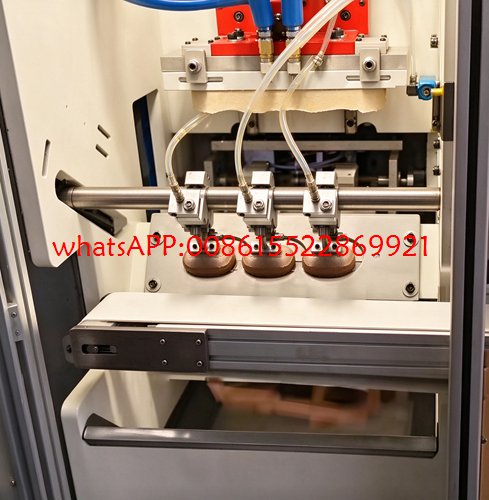

6. High-Efficiency 1-to-3 Automatic Soap Stamping Machine

• Function: Simultaneous multi-cavity shaping, logo embossing, and edge polishing.

• Key Features:

  • 1-to-3 Multi-Cavity Die: Shapes three individual soap bars in a single pressing stroke, effectively tripling production speed compared to single-head presses.

  • Pneumatic or Hydraulic driven pressing mechanism guarantees uniform pressure, sharp logo impression, and smooth rounded edges.

  • Integrated die-refrigeration connection prevents soap sticking and ensures clean release every cycle.

Technical Specifications & Parameters

Why Choose Our Integrated Production Line?

• Consistent Product Quality: From mixing to stamping, every machine is velocity-matched to maintain ideal soap density, preventing soft spots or air pockets.

• Quick Mold Changeovers: Custom embossing molds can be swapped out within 30 minutes, making this equipment ideal for contract manufacturers running multiple SKUs.

• Low Energy & Labor Footprint: Designed for operation by just 2 to 3 workers, reducing labor costs while keeping operational noise and energy consumption low.

• Global Compliance & Safety: Outfitted with safety guards, interlock switches, and overload protection to safeguard your operators and pass international safety audits.

Turnkey Services & Engineering Support

We offer complete end-to-end support to ensure your bar soap manufacturing project succeeds from Day 1:

1. Custom Plant Layout Design: Tailored equipment arrangement according to your factory floor space.

2. Custom Logo Mold Engineering: 3D design and CNC machining of your brand logos on stamping dies.

3. Installation & Training: Complete operational guides, remote video installation support, or on-site engineer commissioning.

4. Spare Parts & Warranty: 12-month comprehensive warranty with guaranteed long-term spare parts supply.
